Wavelet Lab Hardware

High-performance Software Defined Radio platforms fully integrated with Valentine RF's Devolution(x) ecosystem. From embedded M.2 modules to massive MIMO arrays.

Best Seller
uSDR Module
uSDR Module
$359
A tiny M.2 single-side components SDR with one RX/TX channels and separate VHF RX for 1 - 250MHz.
RFICLMS6002D / LTC5562
Frequency250 MHz - 3.7 GHz
Sample RateUp to 65 MSps
Bandwidth0.5 - 40 MHz
View in Shop
Embedded

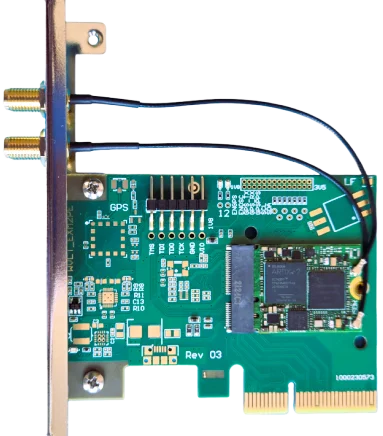

uSDR Rev2 + Adapter
uSDR Rev2 + Adapter
$220
PCIe-only version with the same specs as the original uSDR, optimized for embedded integration.
RFICLMS6002D / LTC5562
Frequency250 MHz - 3.7 GHz
Sample RateUp to 65 MSps
InterfacePCIe Only
View in Shop
High Performance

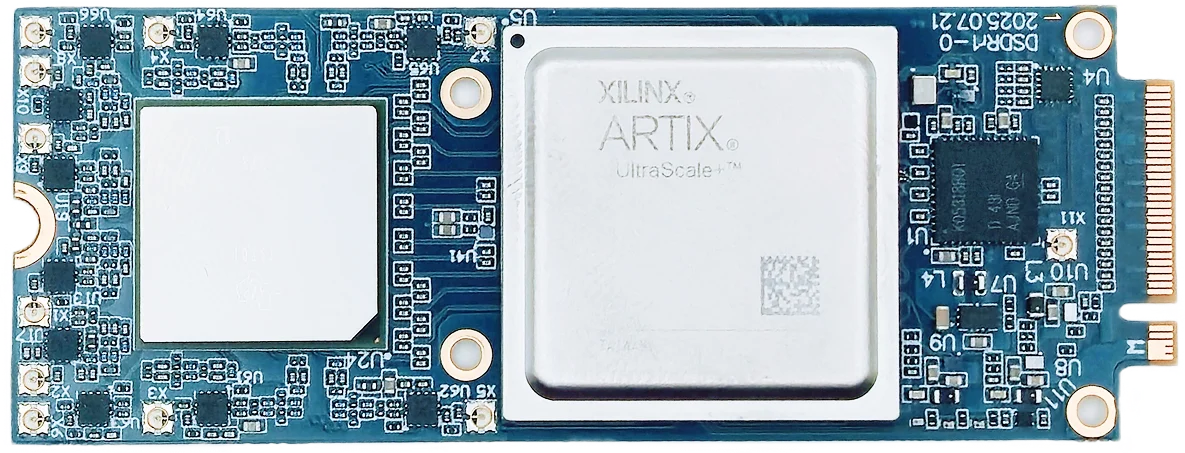

dSDR Module
dSDR Module
Request Quote
A tiny M.2 embedded SDR with 6 RX / 4 TX channels with up to 12 GHz frequency range.
RFICAFE7900/7901/7950
Frequency50 MHz - 12 GHz
Sample RateUp to 500 MSps
Bandwidth0.5 - 500 MHz
View in Shop
Enterprise

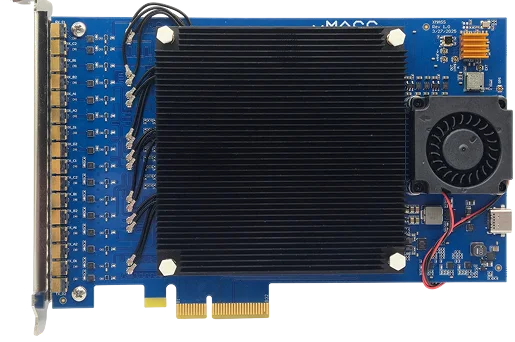

XMASS SDR
XMASS SDR
$4900
A modular, high-performance, 8x8 MIMO transceiver for 4G/5G applications and massive MIMO research.
RFIC4x LMS7002M
MIMO8x8 Configuration
Frequency30 MHz - 3.8 GHz
Sample RateUp to 100 MSps
View in Shop
Extended Range

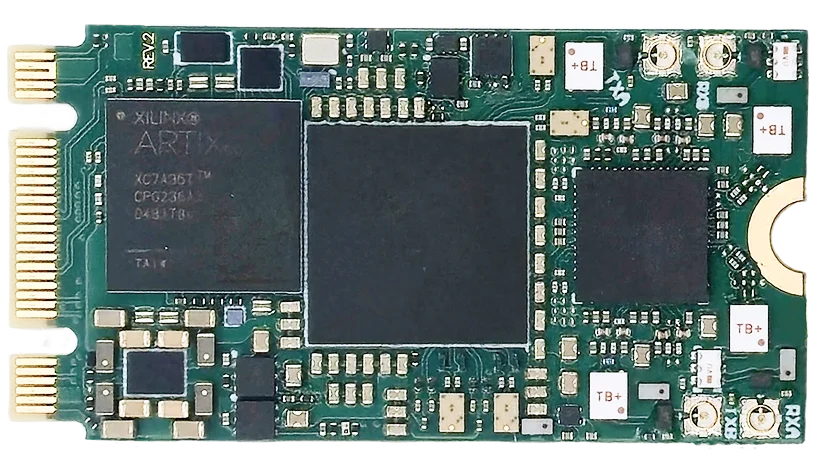

sSDR Module
sSDR Module
Request Quote
2 RX/TX channels M.2 single side components and extended frequency range SDR up to 11 GHz.
RFICLMS7002M + LMS8001
Frequency30 MHz - 11 GHz
Sample RateUp to 100 MSps
Bandwidth0.5 - 90 MHz
View in Shop
Monitoring
inSpectRF
inSpectRF
Request Quote
Superheterodyne receiver solution that offers a wide dynamic range and linearity for spectrum monitoring.
Frontend2-stage Superhet
Frequency20 MHz - 6 GHz
Sample Rate125 MSps
Bandwidth100 MHz
View in Shop

Seamless Integration

All Wavelet Lab hardware is natively supported by the Devolution(x) platform. Connect your device, install the Valentine RF driver pack, and instantly begin spectrum monitoring and analysis operations.

  • Plug-and-play driver support
  • Real-time spectrum visualization
  • Remote deployment capabilities
# Terminal Session

user@valentine-rf:~$ devolution --detect-hardware

[INFO] Scanning for connected SDR devices...

[+] Found Device: Wavelet Lab uSDR (USB 3.0)

Serial: WL-USDR-882910

Firmware: v2.1.0 (Latest)

Status: ONLINE

[INFO] Initializing RF stream...

[+] Stream active: 2.4 GHz center freq, 40 MHz bw

user@valentine-rf:~$ _
